Specifications

• Optics: infinity-corrected optical system, RMS-threaded objectives with 45mm parfocal distance

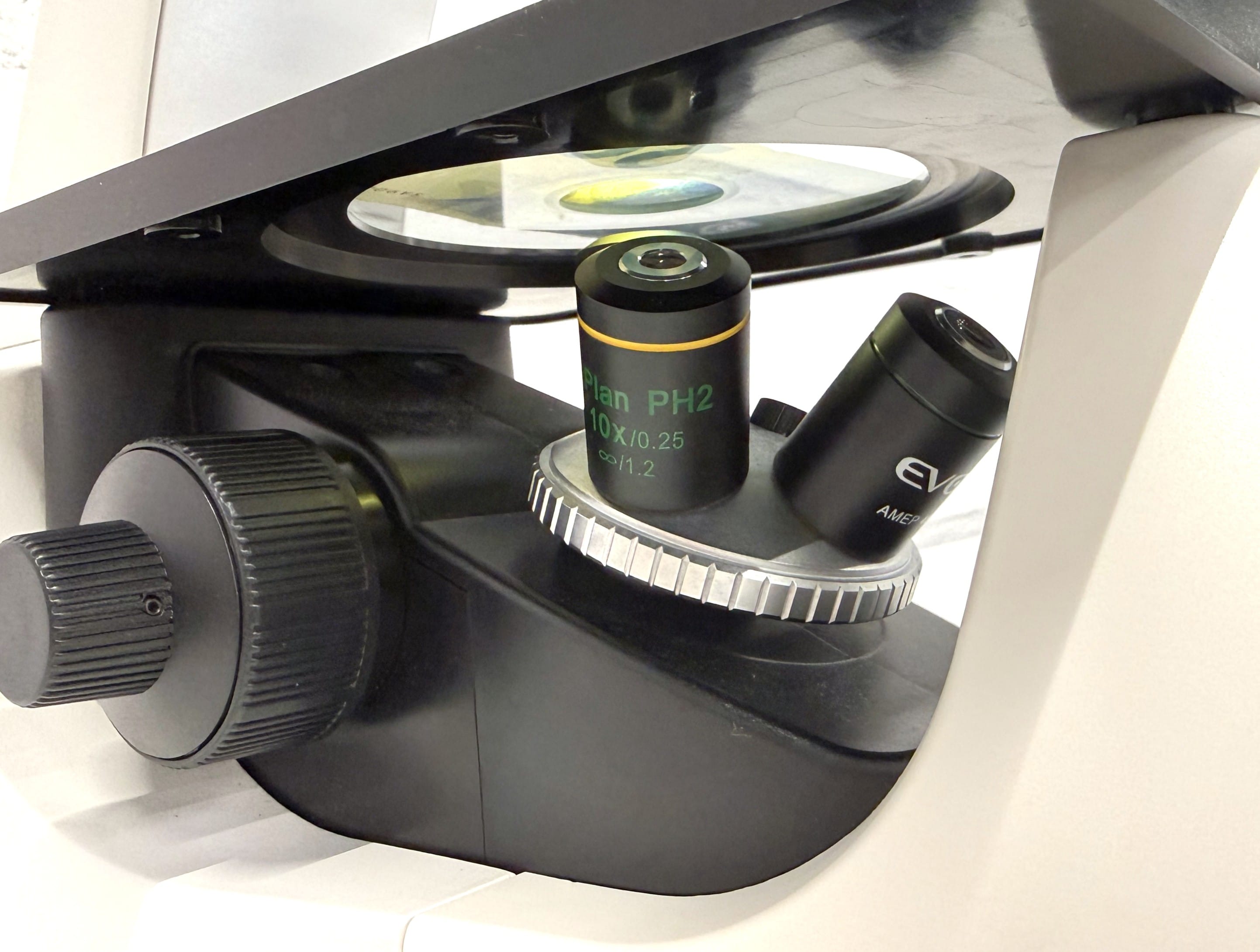

• Objectives LPlan PH2 10X/0.25 - LPlan PH2 4x/0.13 - LPlan PH2 20x/0.40
• Illumination: adjustable intensity LED (>50,000-hr. life per light cube)
• Contrast methods: transmitted light (brightfield and phase contrast)
• Objective turret: 4-position, manual control
• Condenser: 3-position turret for brightfield and phase contrast
• Condenser working distance: 60mm

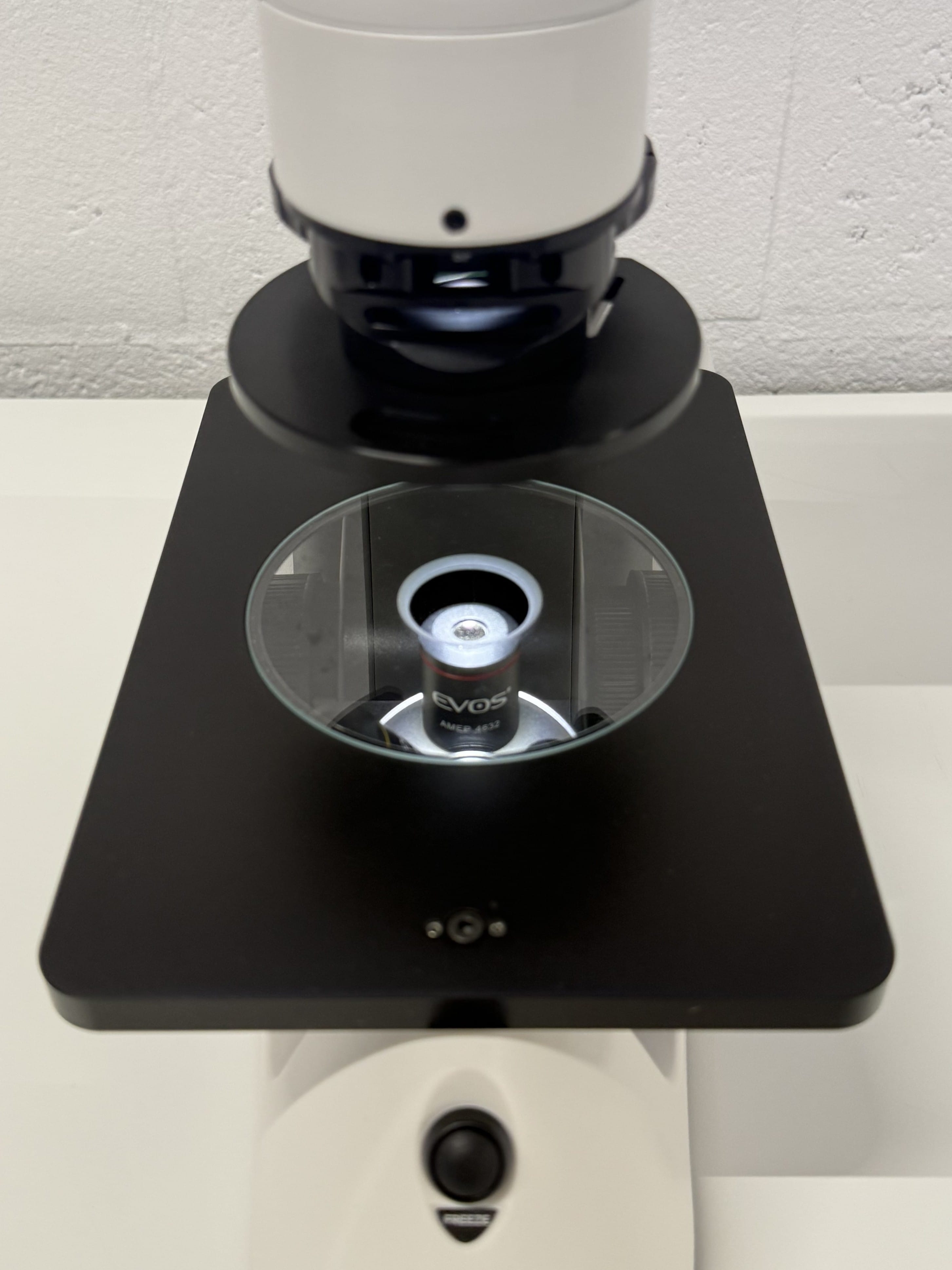

• Stage: fixed stage
• Focus mechanism: coaxial focus knobs with tension control
• Course focus: 38mm/rev
• Fine focus: 0.2mm/rev, precision 0.002mm

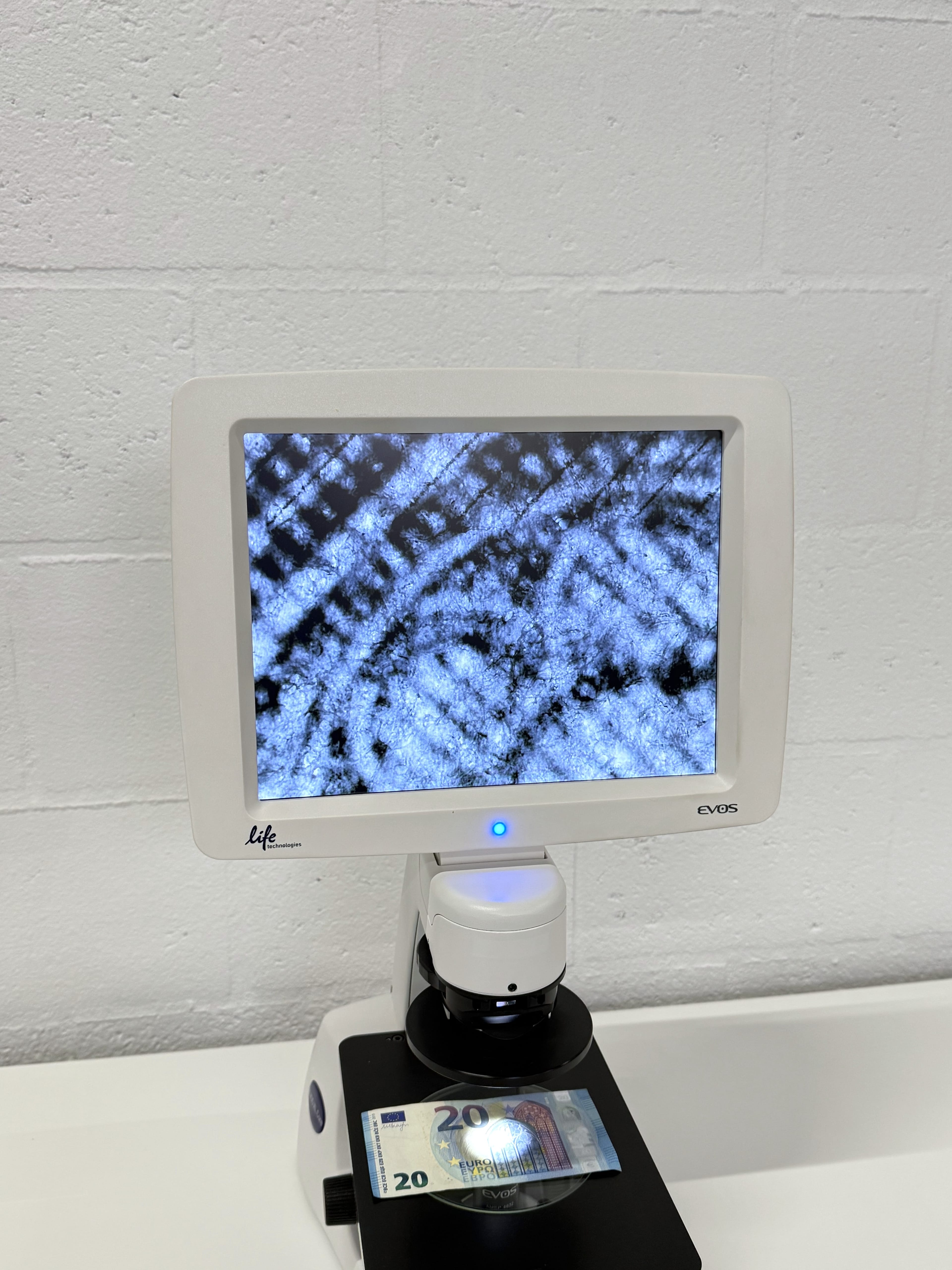

• LCD display: 12.1 in. high-resolution (1024 x 768 pixels) color monitor with adjustable tilt
• Camera: Color, 1/2 in. 2048 x 1536 pixels, 3.1 megapixels
• Image acquisition: embedded operating system with software for image capture and saving via mouse or front-mounted manual buttons
• Captured images: color camera; 24-bit full color; TIFF, PNG, jpeg, bmp; 2048 x 1536 pixels
• Output ports: Two USB 2.0 ports
• Power supply: AC adapter; input 100-240V, 47-63 Hz; output 12 VDC/2.0A 24W max
• Dimensions: 40.6 x 31.8 x 53.3cm (6 x 12.5 x 21 in. )
• Weight: 9.1kg (20.1 lb.)
