Thermo Fisher Scientific Applied Biosystems QuantStudio™ 5 Real-Time PCR Instrument

Service history

The system underwent preventive maintenance by Thermo Fisher Scientific on 17 April 2026.

• Last service: 17 April 2026
• Performed by: Thermo Fisher Scientific
• Next scheduled service: 17 April 2027

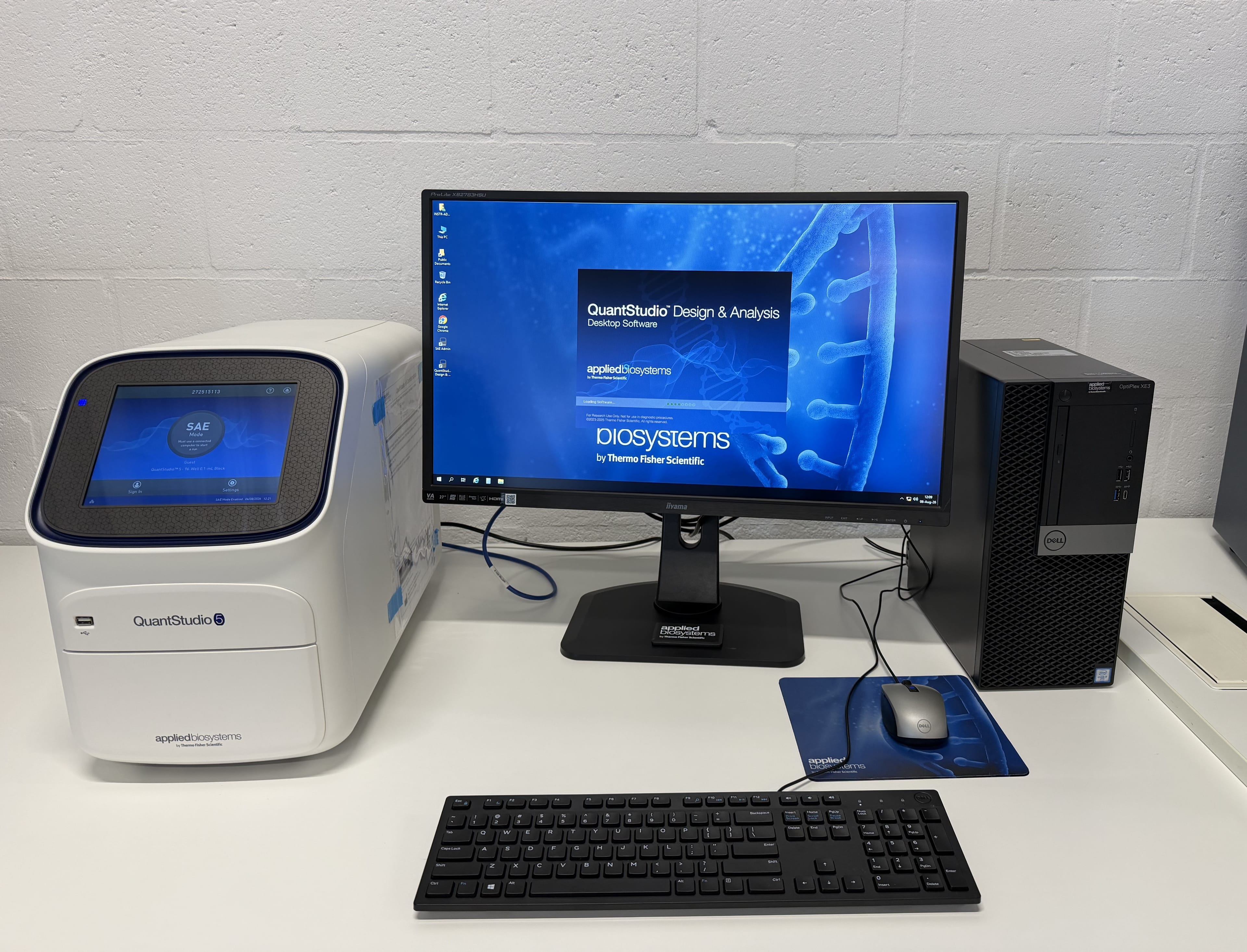

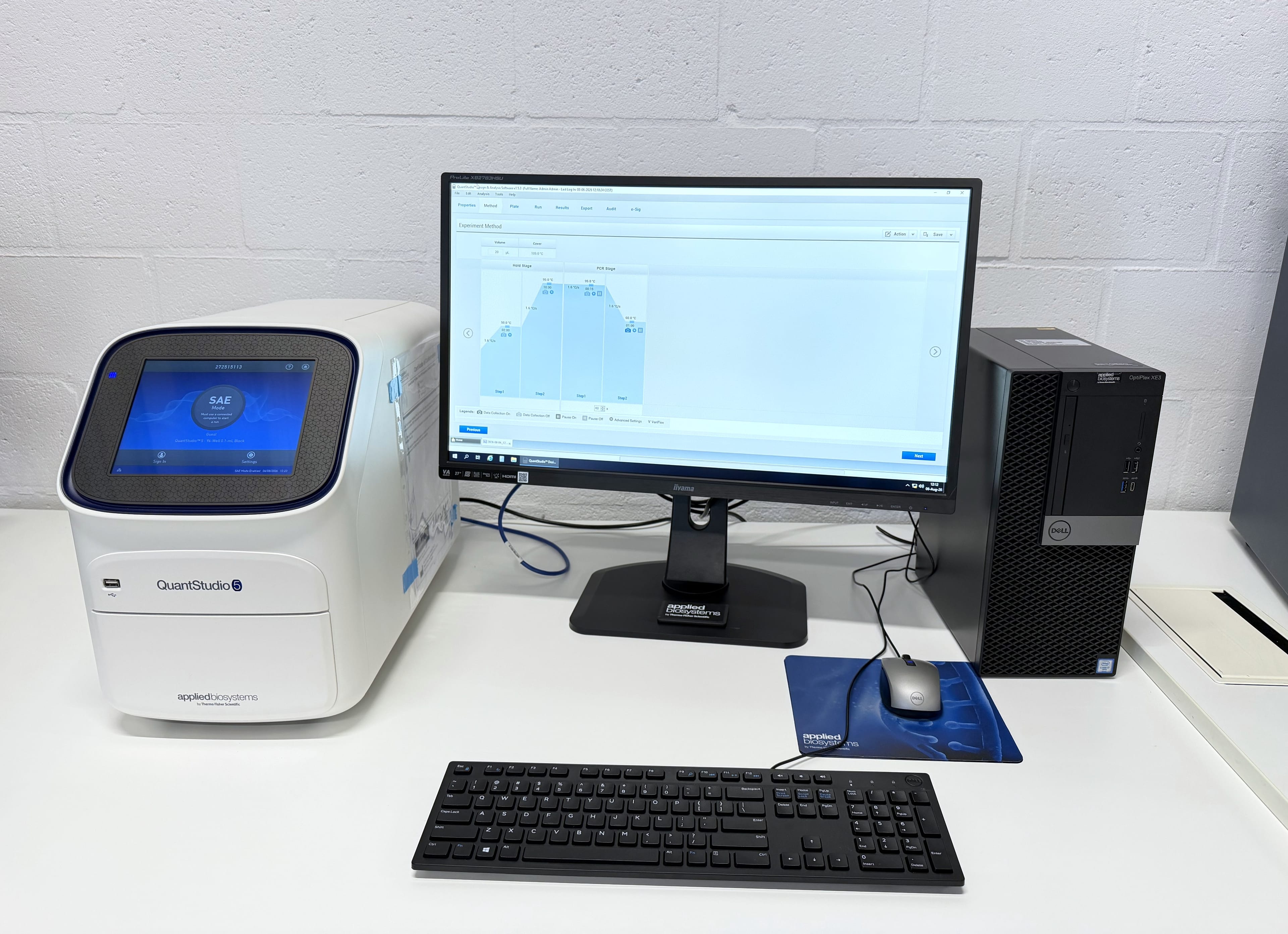

Included in the sale

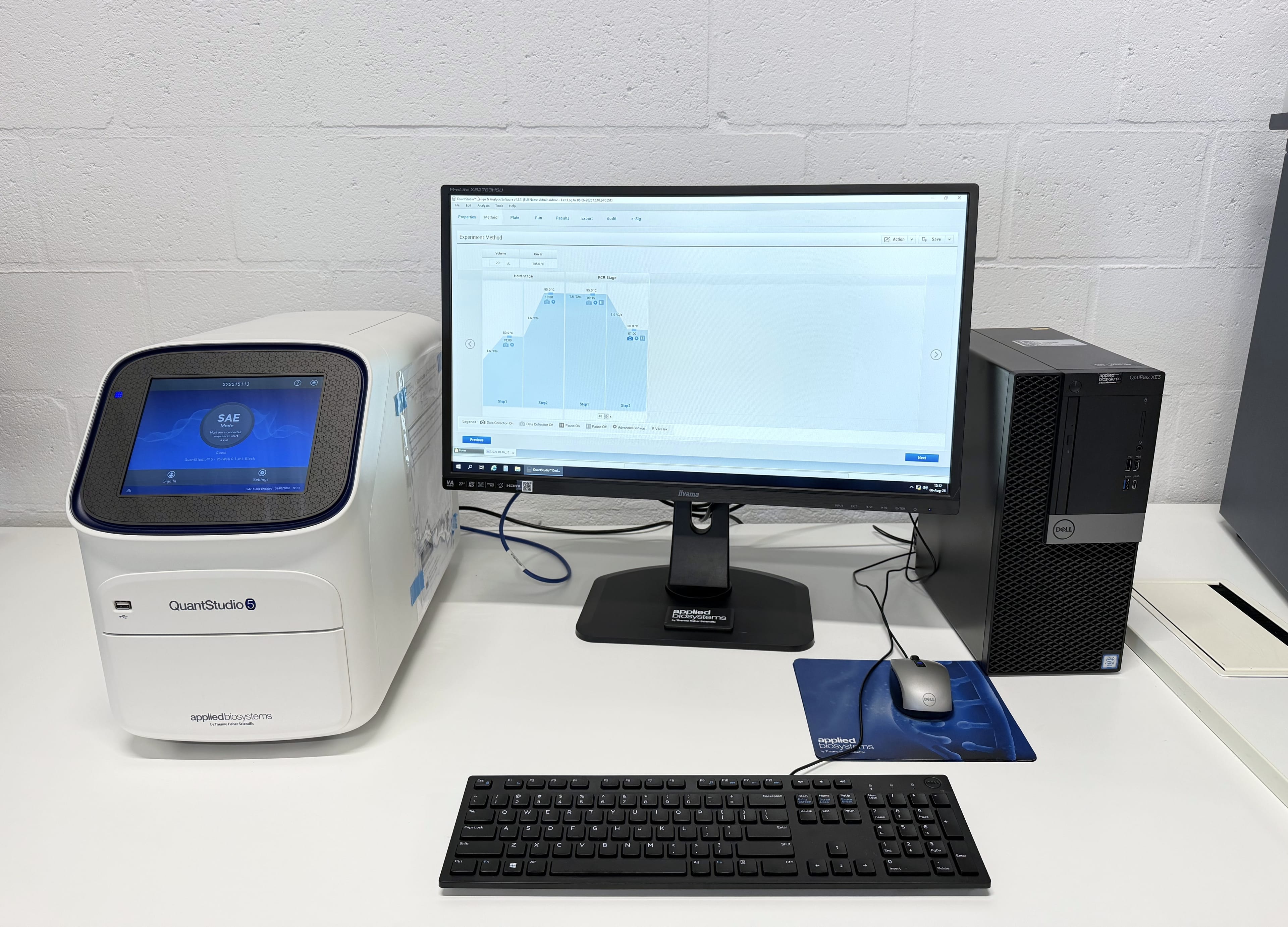

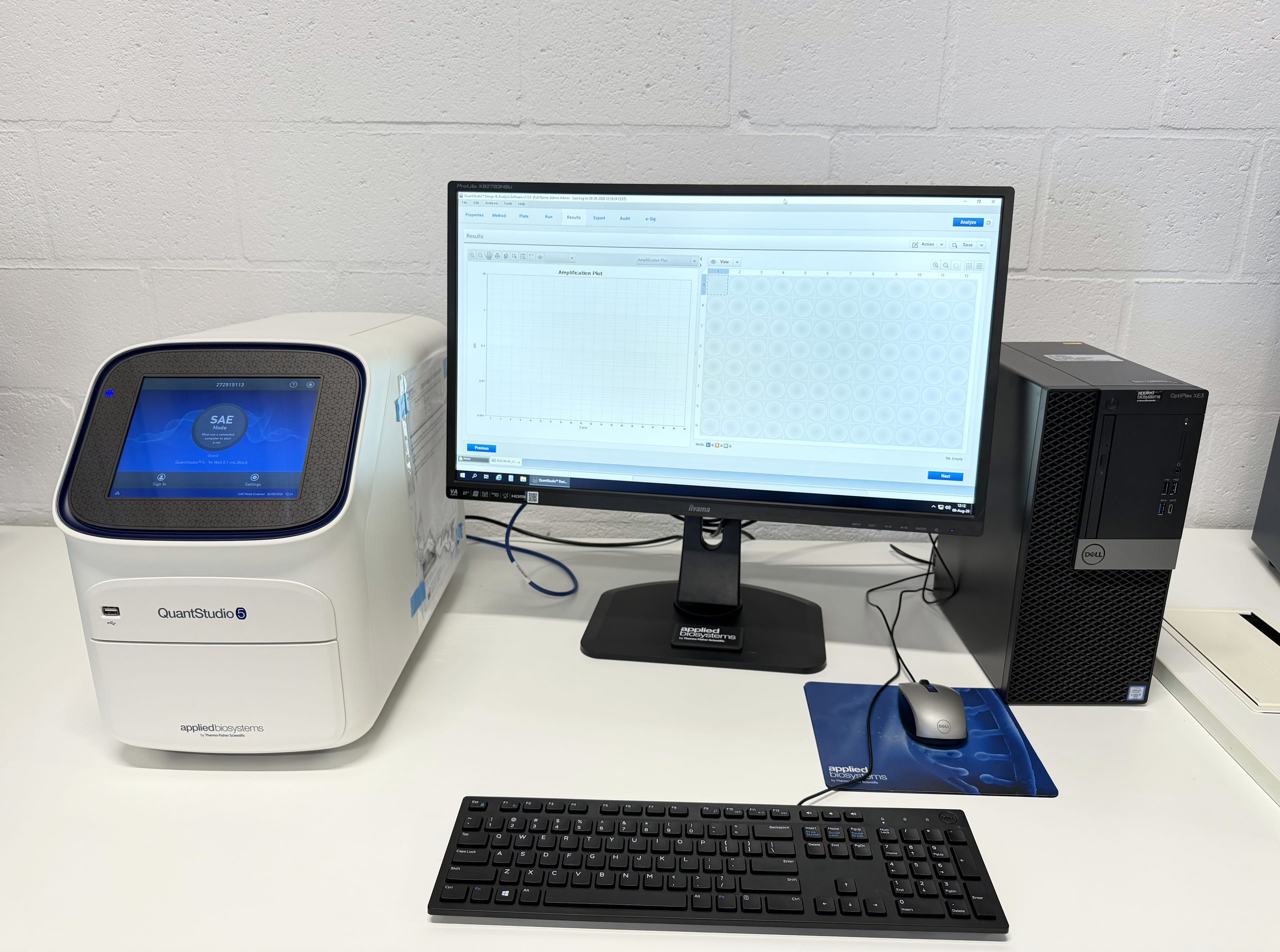

• Applied Biosystems QuantStudio™ 5 Real-Time PCR Instrument
• 96-well, 0.1 mL thermal block
• Dell OptiPlex computer

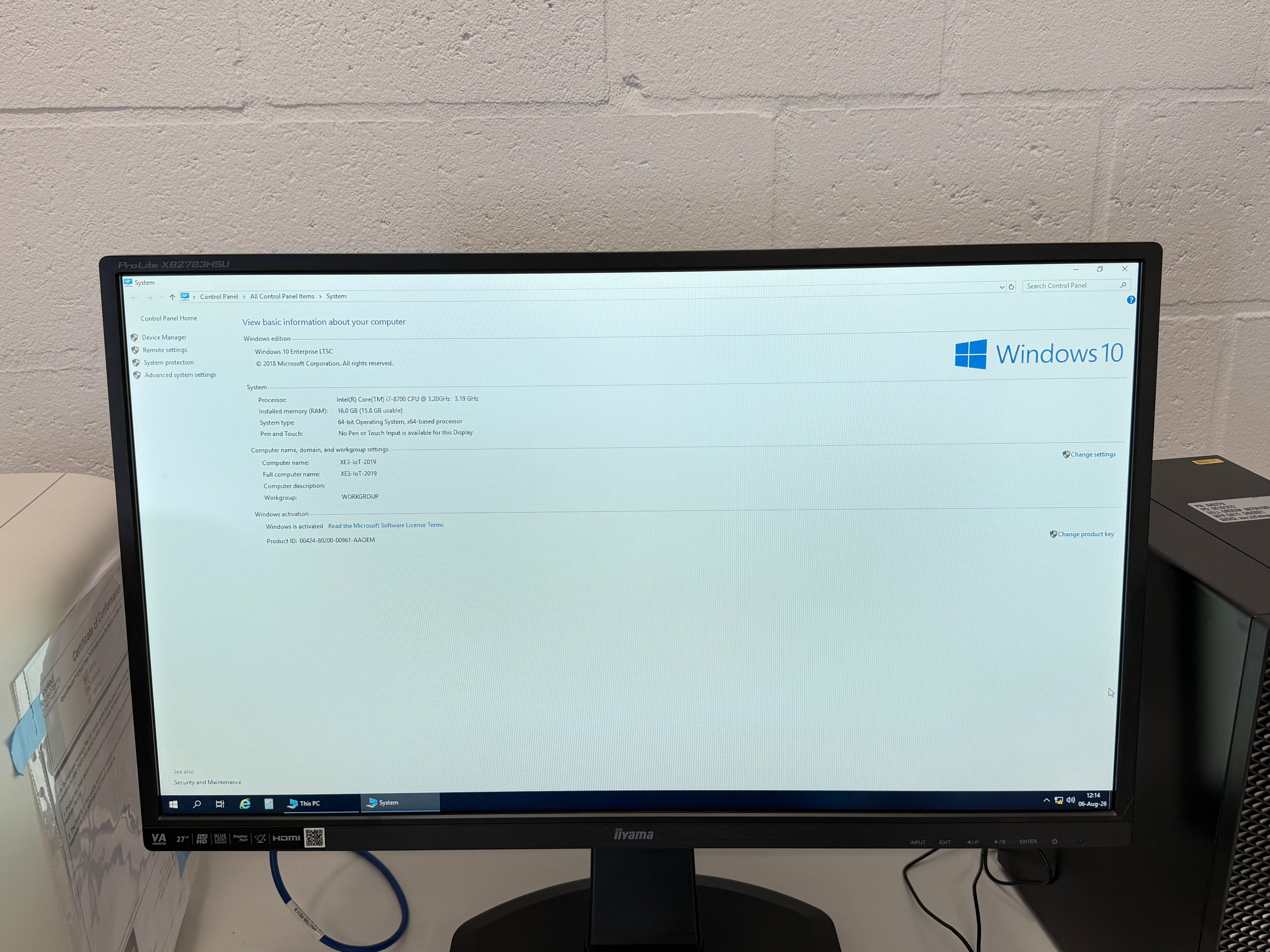

• Monitor
• Keyboard and mouse

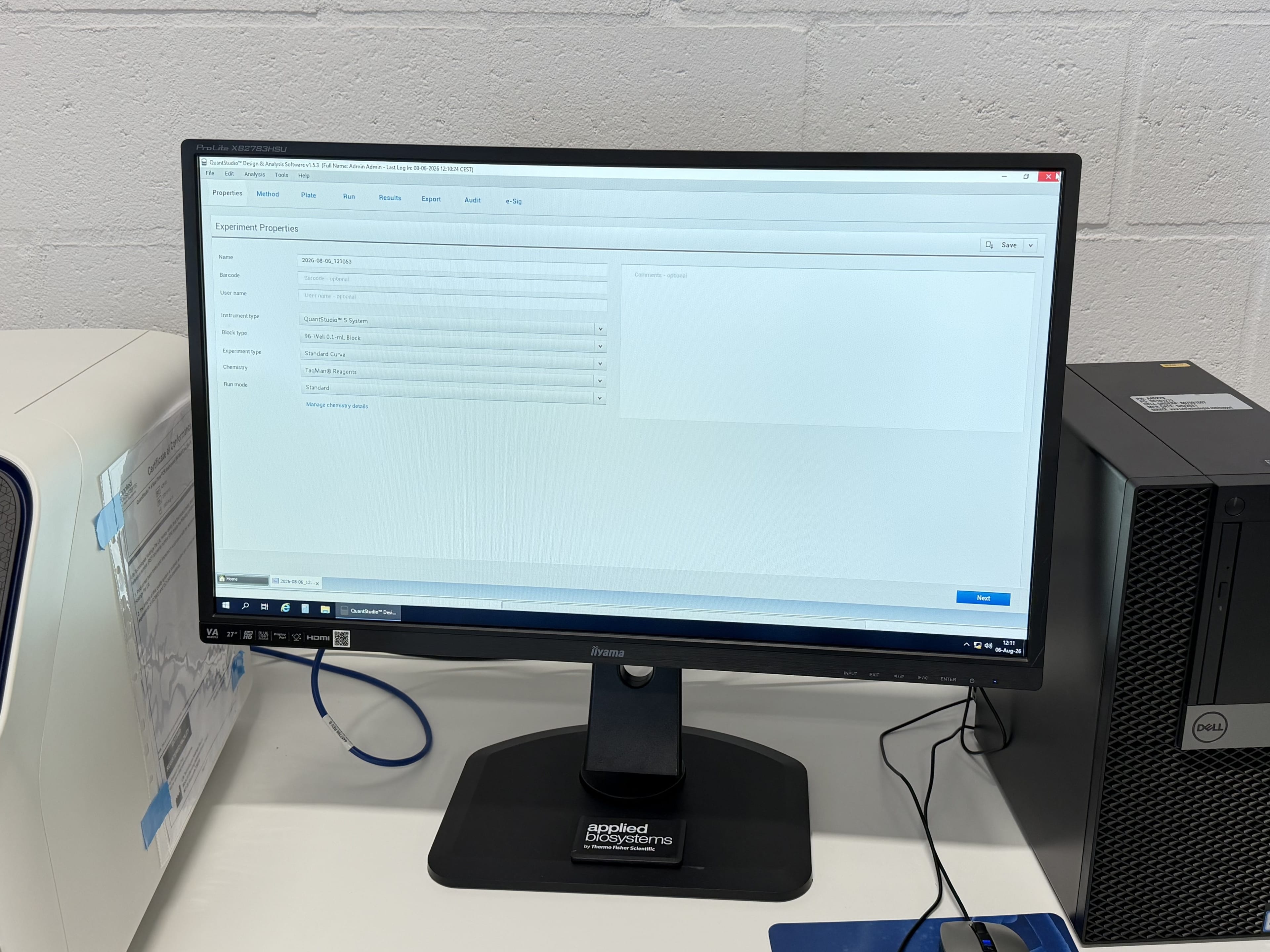

• QuantStudio Design & Analysis Desktop Software

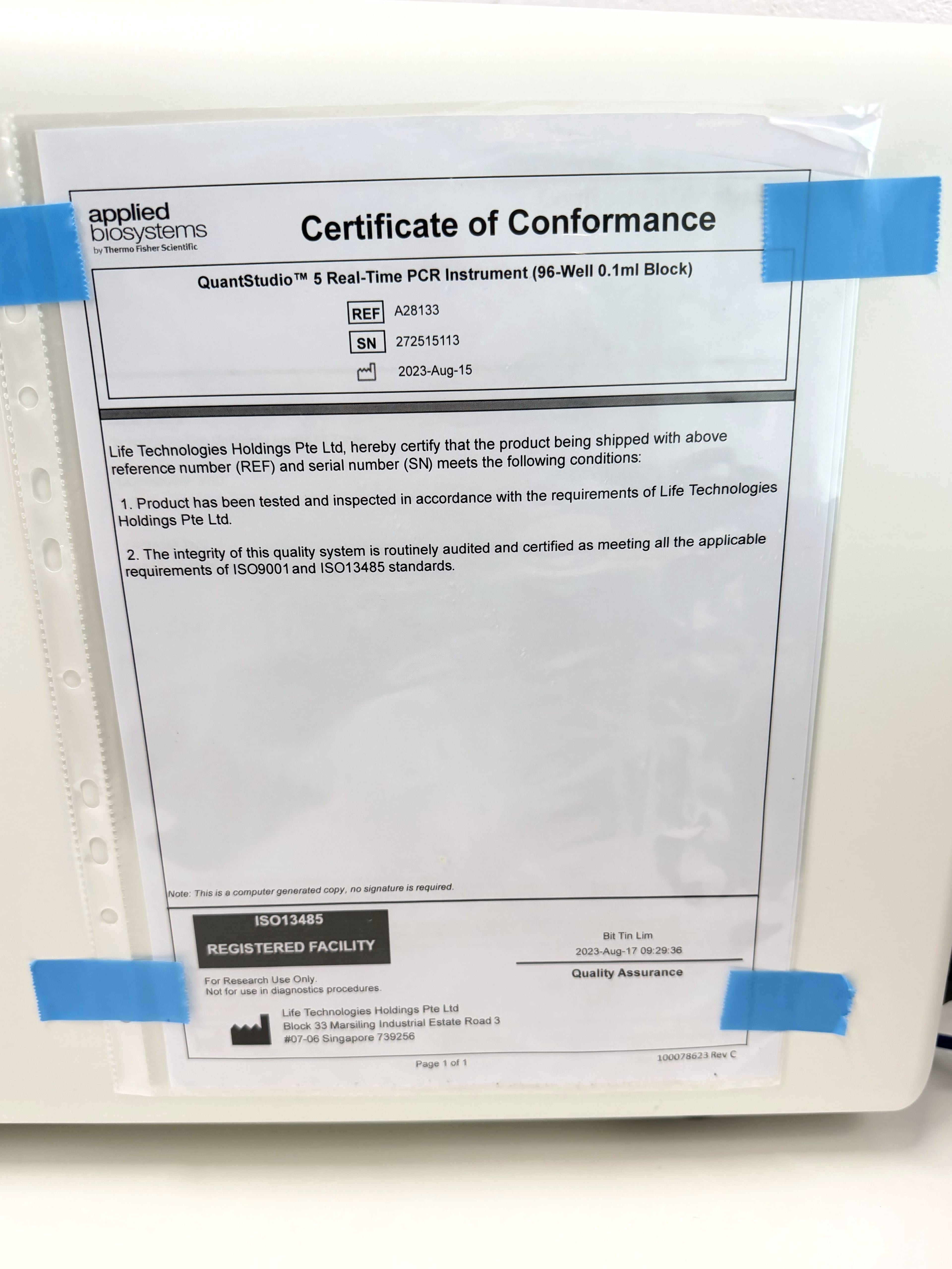

• Certificate of Conformance

Technical specifications

• Manufacturer / model: Applied Biosystems (Thermo Fisher Scientific) QuantStudio™ 5 Real-Time PCR System

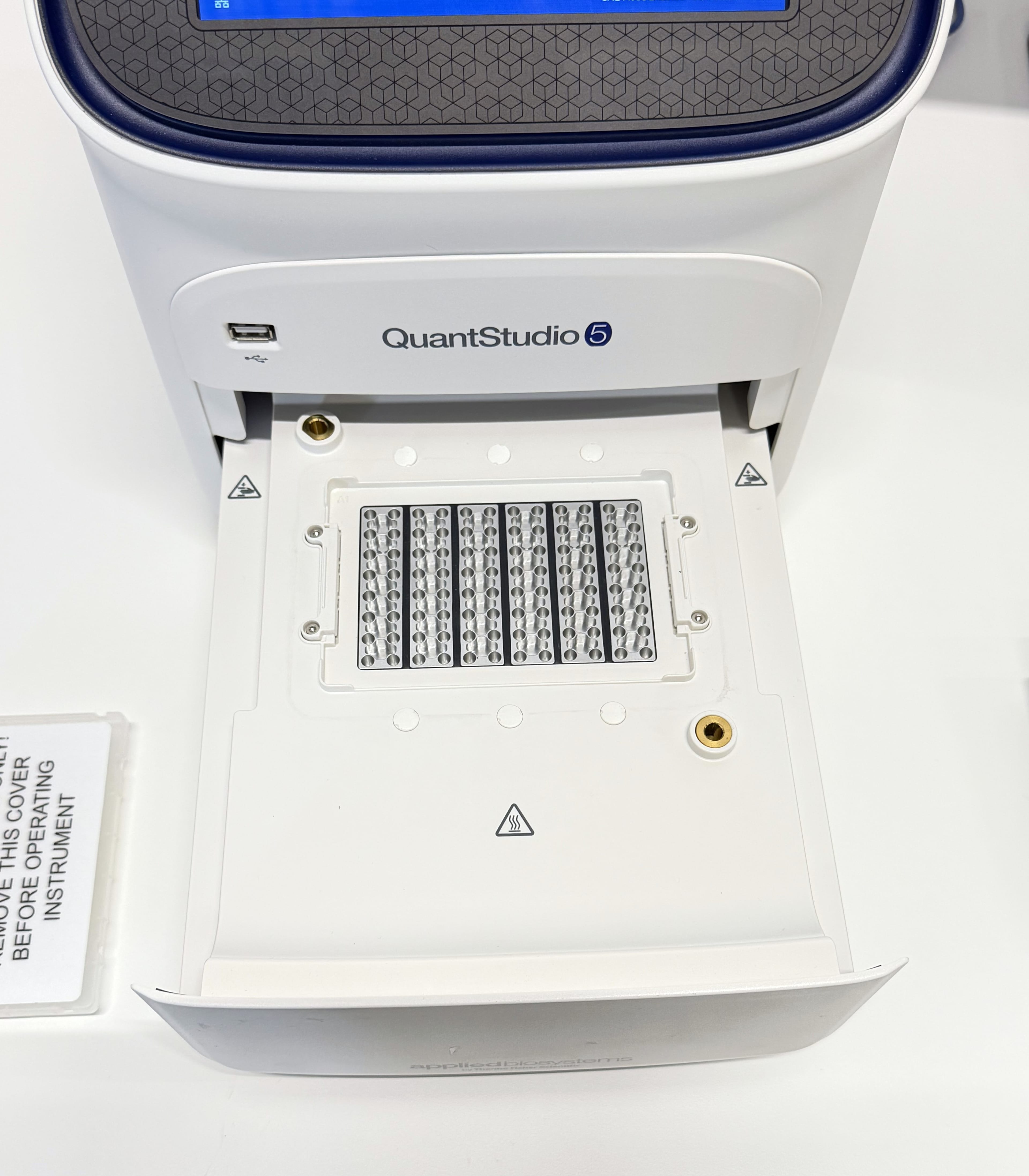

• Block: 96-well, 0.1 mL, fixed; reaction volume 10–30 µL
• Optics: OptiFlex™, white LED, 6 independent channels, 21 filter combinations; excitation 450–680 nm, detection 500–730 nm
• Multiplexing: up to 6 targets
• Temperature: Peltier, 4–99.9 °C, uniformity 0.4 °C, 6 VeriFlex™ zones; max. ramp 6.5 °C/s, average sample ramp 3.66 °C/s
• Sensitivity: detects approx. 1.5-fold differences in singleplex; dynamic range 10 logs

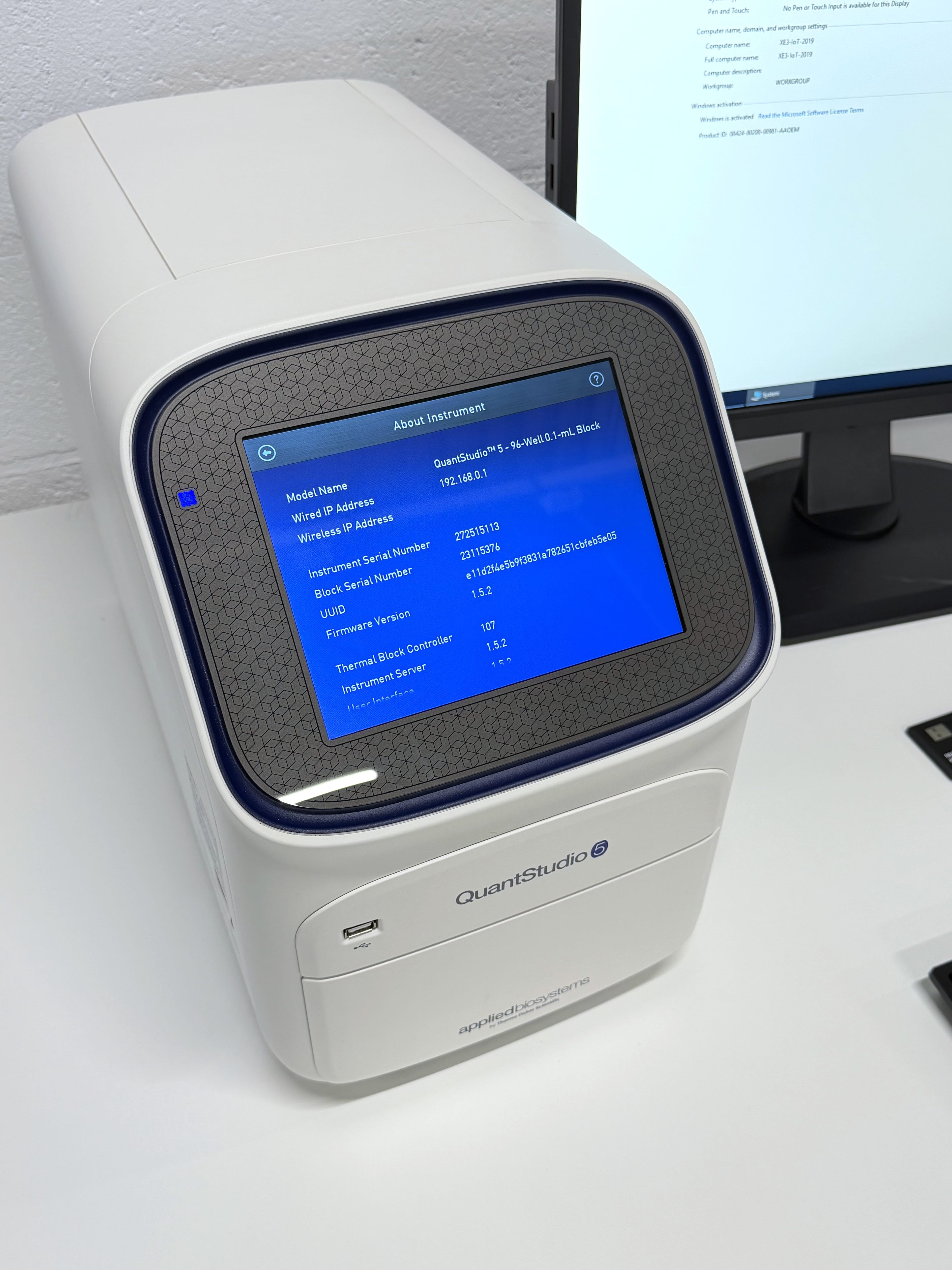

• Display and memory: integrated 8.5″ touchscreen, 10 GB on-board
• Software: QuantStudio Design & Analysis Desktop Software
• Manufactured: 15 August 2023
• Dimensions / weight: approx. 27 × 50 × 40 cm (W × D × H), < 26 kg
• Classification: For Research Use Only (RUO)
