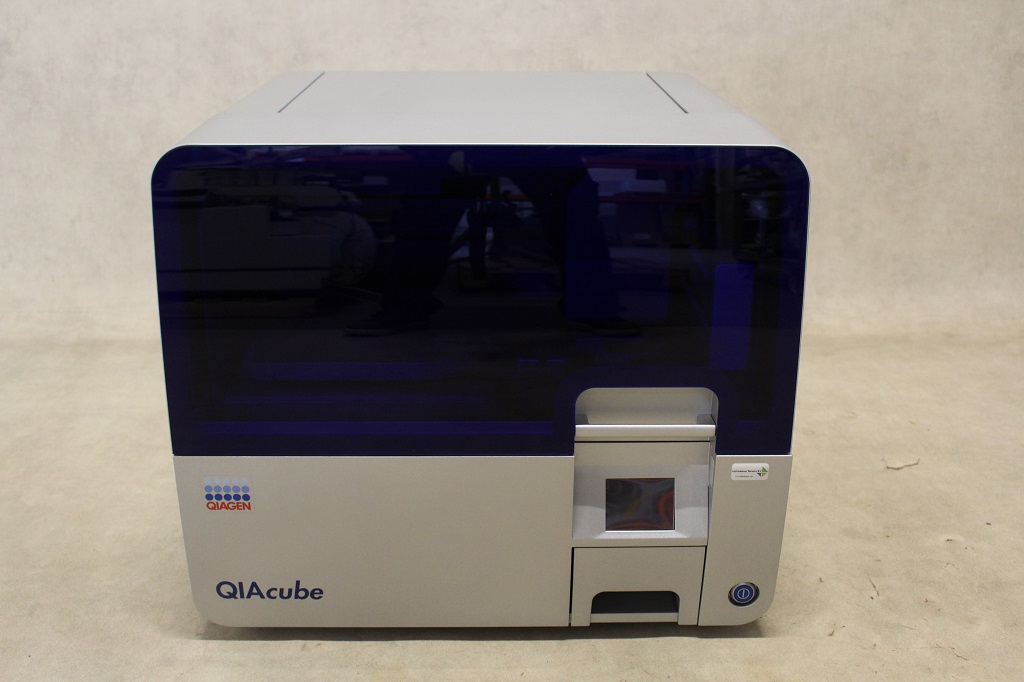

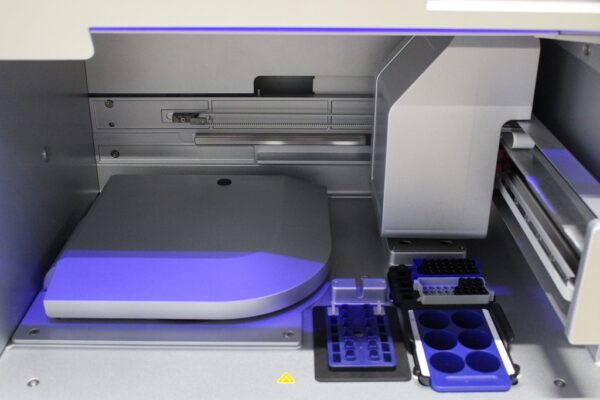

The innovative QIAcube controls integrated components, including a centrifuge, heated shaker, pipetting system and robotic gripper. This enables the QIAcube to fully automate more than 40 QIAGEN spin-column kits.

The QIAcube is preinstalled with a variety of protocols for purification of RNA, genomic DNA, plasmid DNA, viral nucleic acids and proteins, plus DNA and RNA cleanup. All standard protocols in the expanding range are also available for free download. In addition, custom protocols adapted to your specific application requirements can also be requested.

The QIAcube is well suited for academic research laboratories and pharmaceutical, biotechnology and biomedical research laboratories performing applications such as:

Sequencing / sequencing analysis

Gene expression analysis

genotyping

proteomics

Centrifuge: 12,000 x g maximum, swing-out rotor with 12 positions, 45° maximum

Humidity: Relative humidity of 10-75% (noncondensing)

Instrument dimensions: 650 x 620 x 570 mm

Operating temperature: 18 - 28°C

Pipetting system: Syringe size 1 ml, pipetting range 5-900 μl

Samples per run: 1-12 samples per run

Shaker: Speed 100-2000 rpm, amplitude 2 mm, heating range room temperature to 70°C, ramp up time of <5 min from room temperature to 55°C (± 3°C)

Software: QIAGEN protocols are preinstalled on the QIAcube or can be downloaded from www.qiagen.com/MyQIAcube

Weight: 70.5 kg
