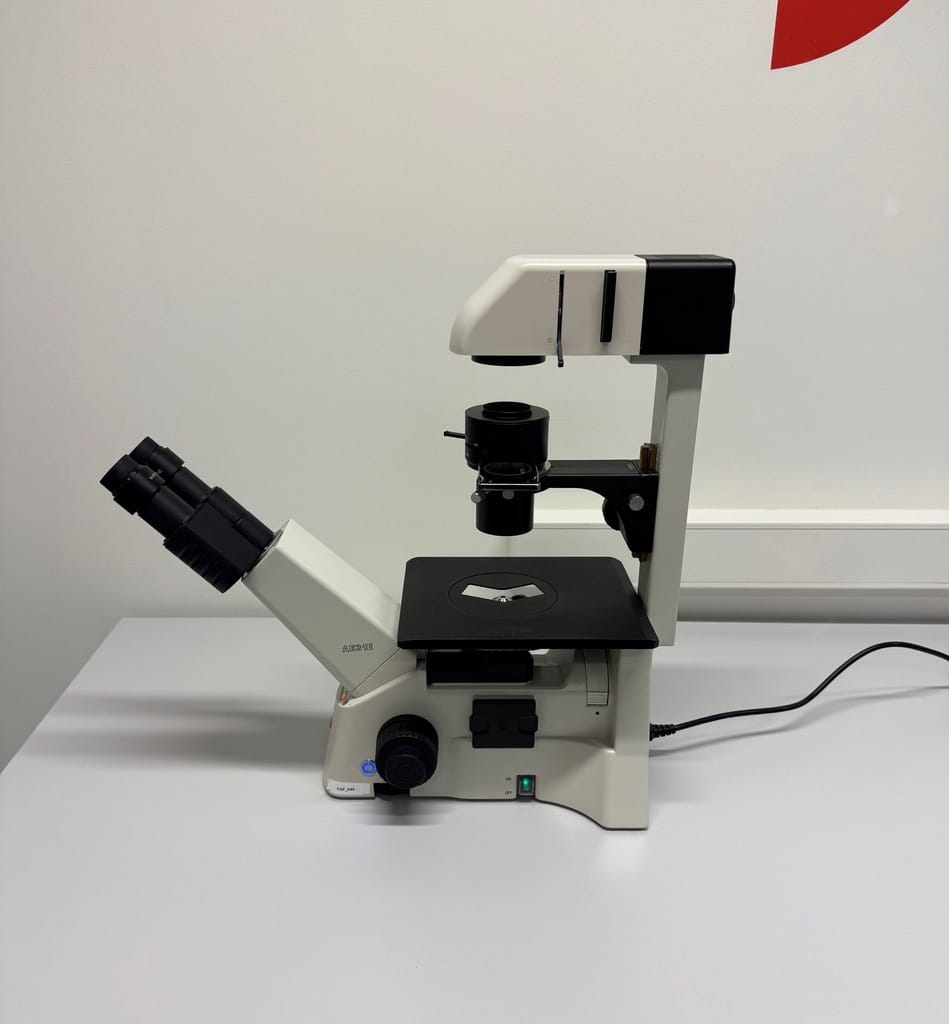

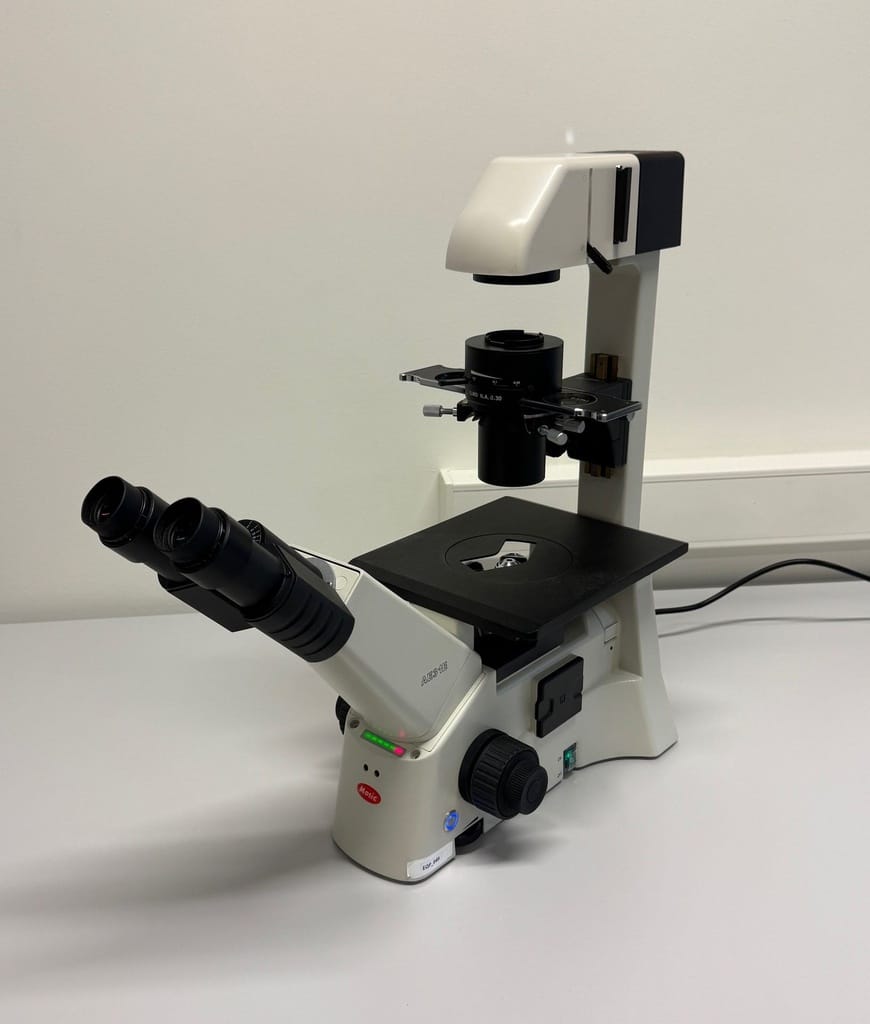

Motic AE31E Inverted Microscope (AE31E)

The Motic AE31E is an inverted microscope designed for viewing specimens from below—ideal for live cell cultures, culture flasks, Petri dishes, and routine biological research.

• Inverted design: image cells in vessels without removing them

• Optics: CCIS® (Colour Corrected Infinity System) for sharp, high-contrast images

• Head: binocular Siedentopf head (optional trinocular), 45° ergonomic viewing angle

• Interpupillary distance: adjustable approx. 48–75 mm

• Eyepieces: WF10x/22 mm widefield with diopter adjustment

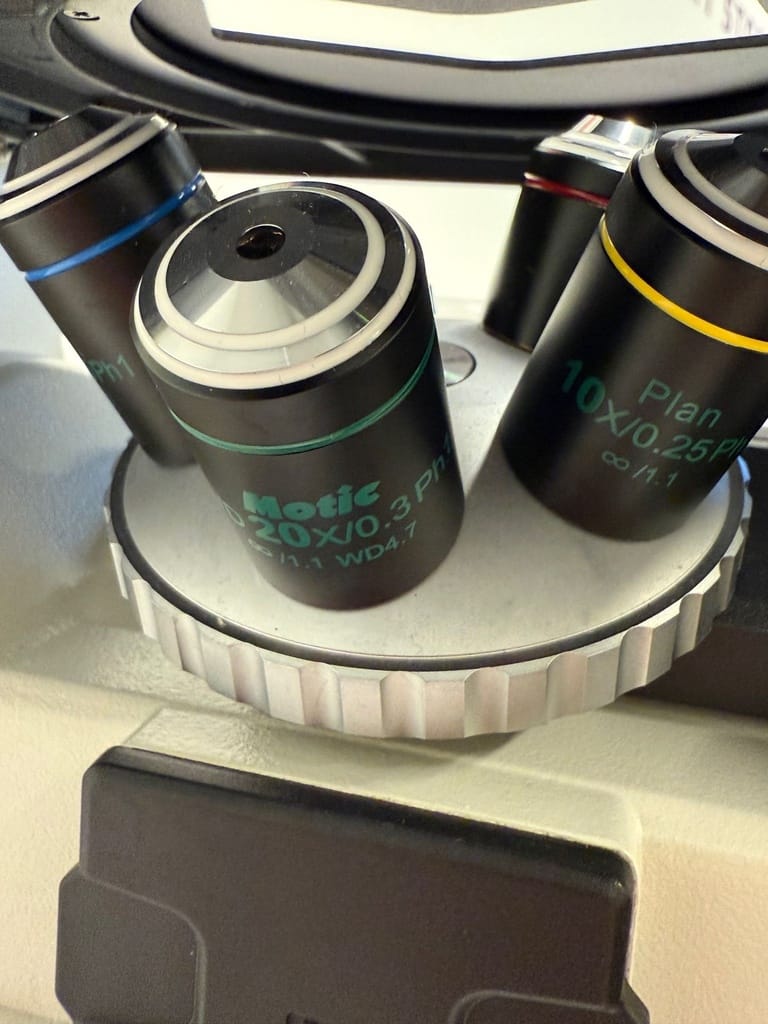

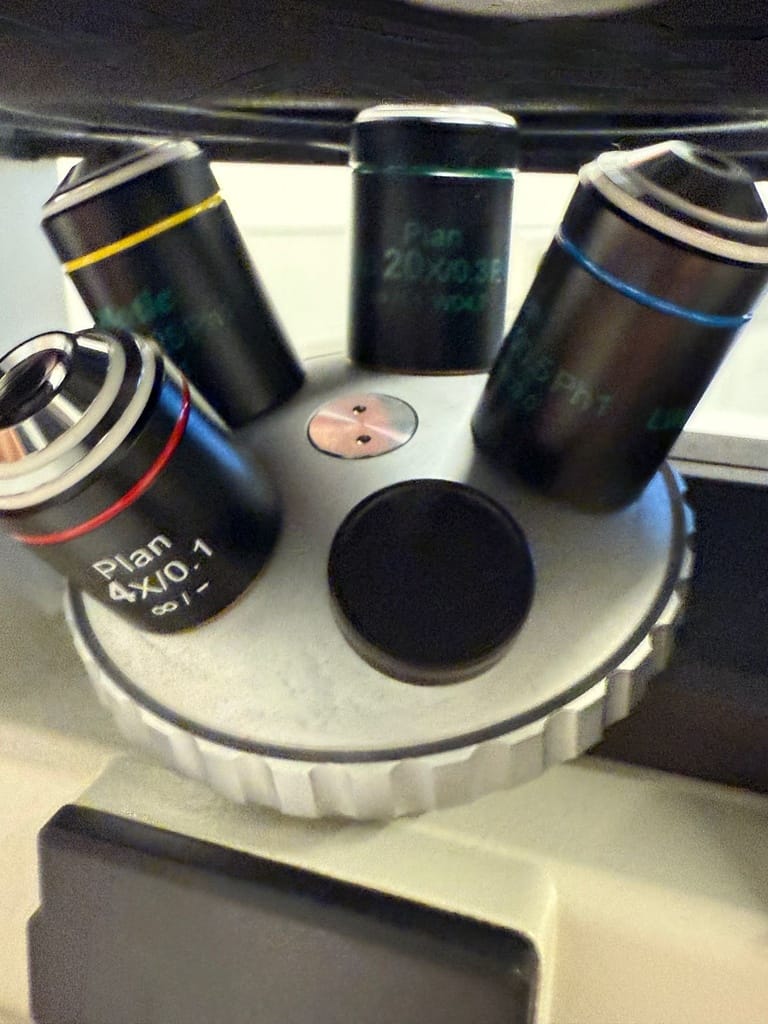

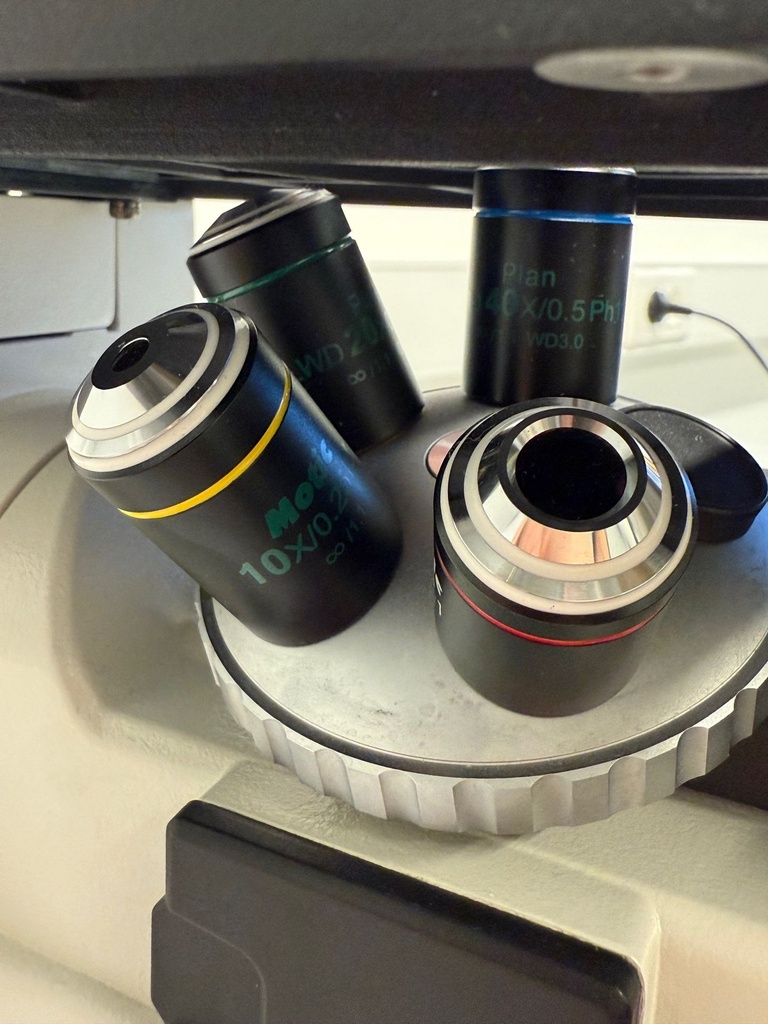

• Objectives (typical set): 4x, 10x (phase), 20x LWD phase, 40x LWD phase plan-achromat; RMS compatible

• Phase contrast: built-in phase slider for enhanced contrast vs. brightfield

• Illumination: interchangeable 6 V/30 W quartz-halogen or 3 W LED with Köhler illumination for even field lighting

• Light features: auto shut-off and intensity memory linked to objective position

• Stage: flat stage approx. 200 × 239 mm with metal and glass inserts

• Condenser: ELWD condenser, N.A. 0.30, 72 mm working distance (focus through vessel bottoms)

• Dimensions (approx.): 200 × 556 × 529 mm (W × D × H)

• Net weight: approx. 11.7 kg

• Power: 100–240 V AC (CE certified)

• Focus: robust coaxial coarse/fine focusing with ~2 µm precision
